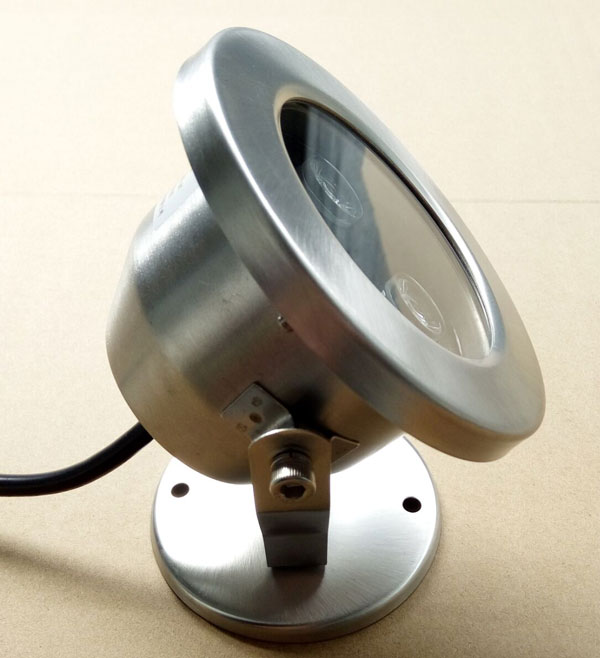

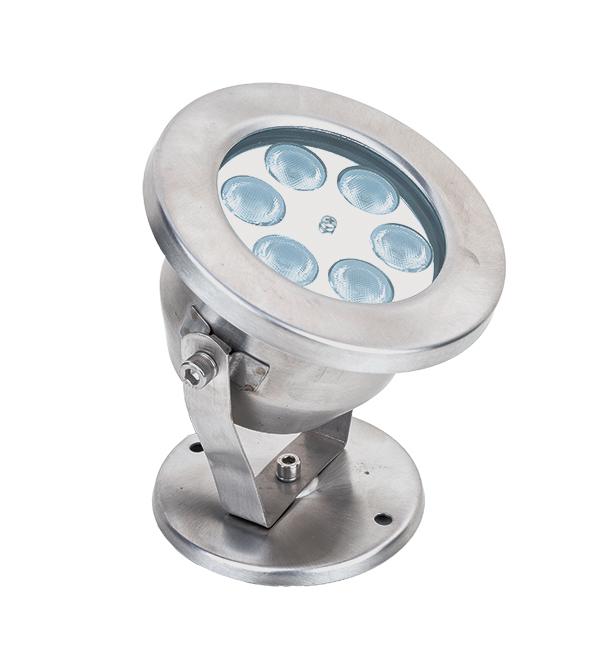

SS304 D145 Underwater Spot Light

Power：	IP-68 M16a copper with nickel-coated.
Control model：	.
Housing：	Stainless steel 304#.
Light Window：	Tempered glass. T=7mm.
Waterproof seal：	Anti-aging silicone seal.
Cable gland：	IP-68 M16a copper with nickel-coated.
Dimming model：	DMX512/RGB.
Power cable：	H05 RN-F L=2.0m

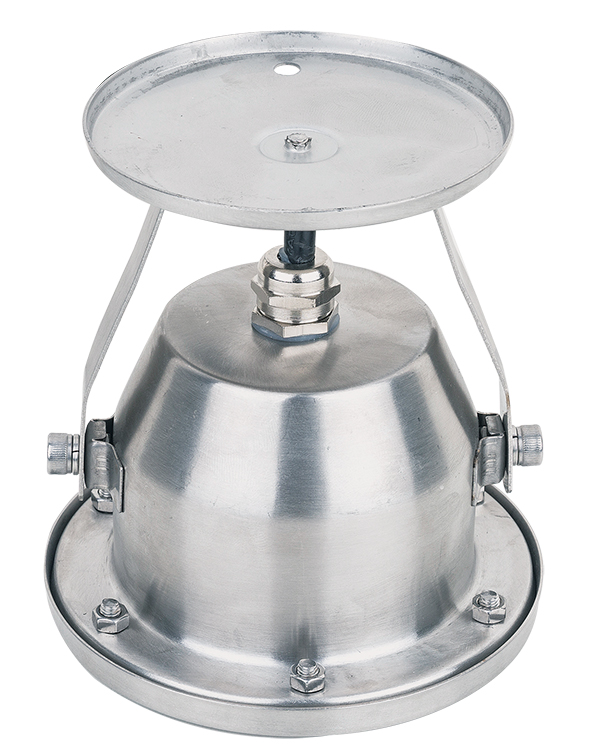

Installation：	Disk base/Clamp type.

Detail


Product Code	FZ-US03S6x3	FZ-US03M6x3	FZ-US03DMX6x3	FZ-US03S9x1	FZ-US03M9x1	FZ-US03DMX9x1	FZ-US03S12x1	FZ-US03M12x1	FZ-US03DMX12x1
Input Voltage(V)	DC24
Power(W)	6x3	6x3	6x3	9x1	9x1	9x1	12x1	12x1	12x1
LEDs Type	High Power LEDs
Luminous(Lm)	1980	978	978	990	489	489	1320	652	652
CCT(K)/Color	3000/6000	2R2G2B	2R2G2B	3000/6000	3R3G3B	3R3G3B	3000/6000	4R4G4B	4R4G4B
Beam Angle(°)	10/30/60/90
Materials	SS304 Light Body+Tempered Glass
Control Model	On/Off	RGB Control	DMX512 Control	On/Off	RGB Control	DMX512 Control	On/Off	RGB Control	DMX512 Control

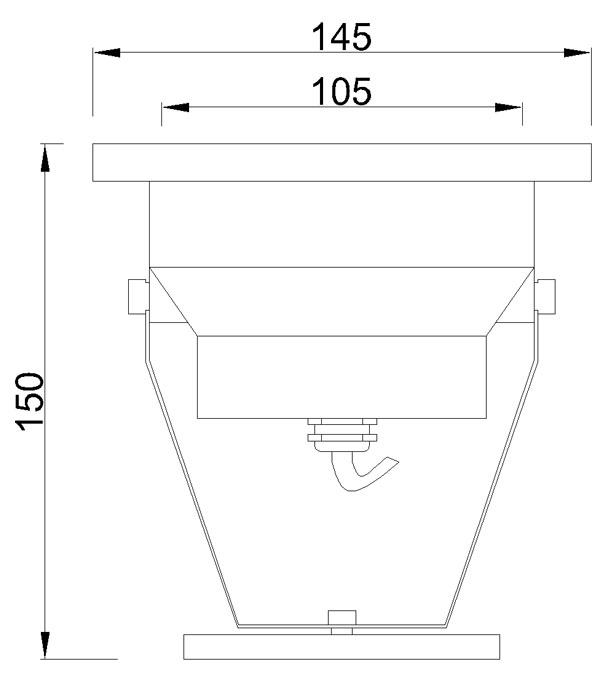

Dimension(mm)	D145xH150

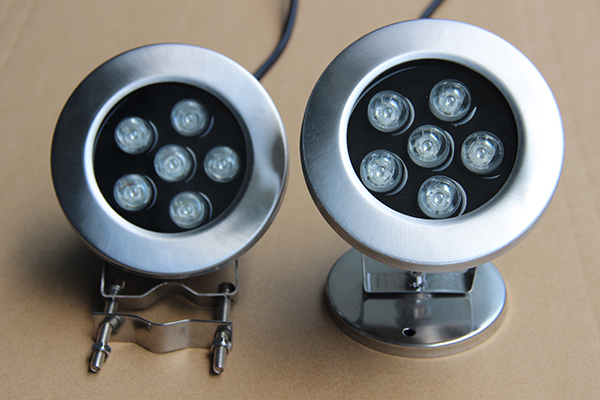

Installation Method	Disk Base/Clamp type
IP Grade	IP68
IK Rate	IK08
Warranty(Years)	2
