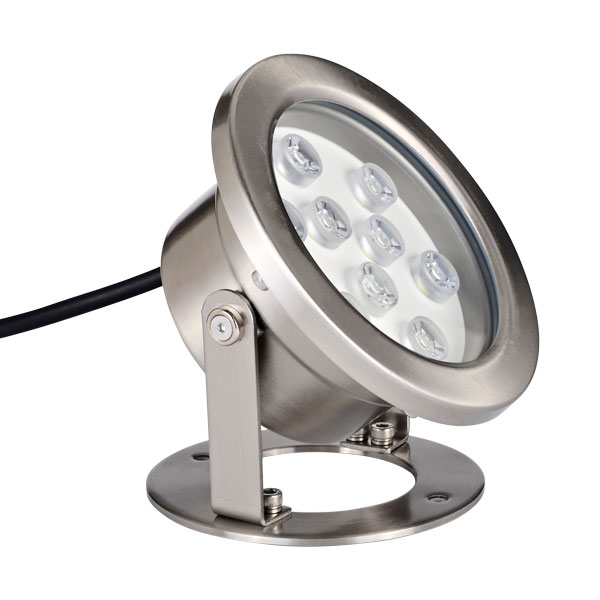

SS304 D190 Underwater Spot Light

Power：	IP-68 M16a copper with nickel-coated.
Housing：	Stainless steel 304#.
Light Window：	Tempered glass. T=7mm.
Waterproof seal：	Anti-aging silicone seal.
Cable gland：	IP-68 M16a copper with nickel-coated.
Dimming model：	DMX512/RGB.
Power cable：	H05 RN-F L=2.0m.
Installation：	Disk base/Clamp type.

Detail

水底射灯 12.jpg

Product Code	FZ-US03S12x3	FZ-US03M12x3	FZ-US03DMX12x3
Input Voltage(V)	DC24
Power(W)	12x3	12x3	12x3
LEDs Type	High Power LEDs
Luminous(Lm)	3960	1956	1956
CCT(K)/Color	3000/6000	4R4G4B	4R4G4B
Beam Angle(°)	10/30/60/90
Materials	SS304 Light Body+Tempered Glass
Control Model	On/Off	RGB Control	DMX512 Control

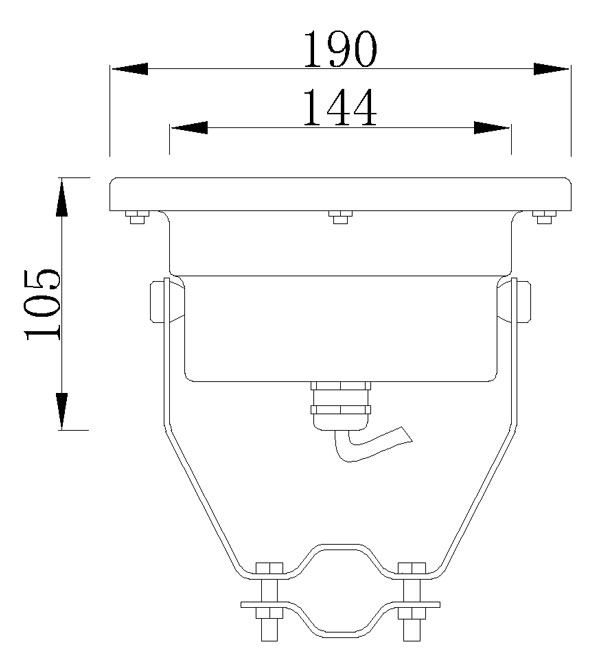

Dimension(mm)	D190xH130
Installation Method	Disk Base/Clamp type
IP Grade	IP68
IK Rate	IK08
Warranty(Years)	2
